ROBATECH GLUING SOLUTIONS

Cold glue delivery unit

Robatech offers a perfectly tuned product range of modular delivery systems for cold glue.

Low-pulsation piston pumps or precision gear pumps are used depending on system and adhesive type. Pressure tanks, piston and membrane pumps are available for water-based adhesives. Dispersion adhesives and single-component PUR adhesive can be processed.

Products

Delivery unit CXU 110 GRU

Low- to medium-viscosity dispersion adhesives
Delivery volume: max. 110 l/h
Adhesive pressure: max. 50 bar

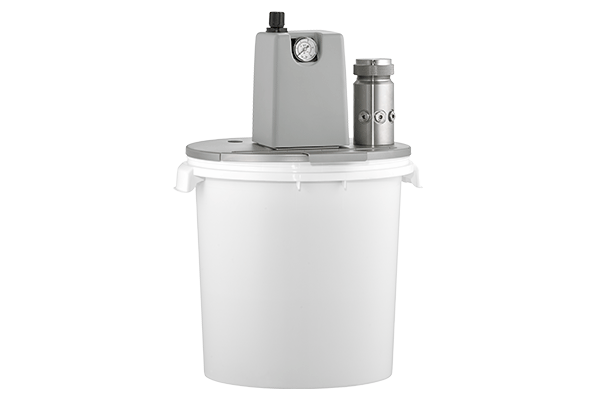

Piston pump CXT

Dispersion adhesives
Feed capacity: max. 6 kg/h
Adhesive pressure: max. 72 bar

Double diaphragm pump CXMP

Dispersion adhesives
Feed capacity: max. 1,800 kg/h
Adhesive pressure: max. 8 bar

Double diaphragm pump CXMPS

Dispersion adhesives
Feed capacity: max. 1,200 kg/h
Adhesive pressure: max. 8 bar

Pressure tank DT 10

Dispersion adhesives
Adhesive pressure: max. 6 bar

Gear pump

Single-component PUR adhesive
Feed capacity: max. 175 kg/h
Adhesive pressure: max. 100 bar

Diaphragm pump for single-component PUR

Single-component PUR adhesive
Feed capacity: max. 30 kg/min
Adhesive pressure: max. 8 bar
