AX Diamond – robust and cost-optimized hotmelt adhesive application head

The jetting heads of the AX Diamond series are ideally suited for contact-free coating of low- to medium-viscosity hotmelt adhesives. Due to its robustness, the AX Diamond application head is ideally suited for harsh conditions while ensuring safe and high-quality adhesive application.

The insulated jetting heads are safe and energy-efficient. Thanks to their modular design, they are inexpensive and can be flexibly customized for the respective application. The robust hot melt adhesive application heads are suited for precise bead application. Although they were developed for applications such as wrap-around, box and tray resp. fruit tray, they are also used in different areas.

Advantages of the AX Diamond jetting heads – at a glance
  • Resistant thanks to robust design
  • Energy-efficient and safe thanks to CoolTouch insulation
  • Constant temperature for highest adhesive quality
  • No nozzle blockages thanks to integrated filter
  • 24 VDC – actuation via PLC
  • Easy format conversion for 90° nozzle
Robust, safe, and energy-efficient

The compact and robust design makes the AX Diamond very resilient, especially under harsh conditions. Thanks to the filter integrated in the heating block, nozzle blockage is prevented. Nozzle damage as well as heat loss are minimized through a nozzle guard. This results in even better tear-off and reduced operation interruptions.

The Diamond series increases operational safety with CoolTouch insulation. The jetting head insulation protects operators as well as products to be glued from heat. The heat-resistant insulation reduces energy consumption and ensures a constant adhesive temperature, even with a draft.

Integrated Filter
Easy integration thanks to modularity and compatibility

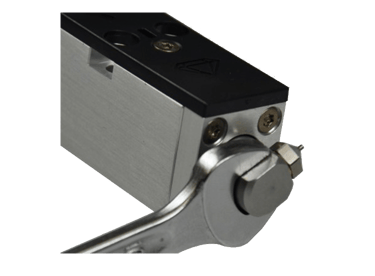

The AX Diamond can be easily integrated. If space is tight, the solenoid valve can also be mounted externally and actuated via remote control. Format conversions for 90° applications can be implemented quickly and easily using a wrench. As part of the Diamond series, the AX Diamond is compatible with most Robatech application systems. This simplifies integration into existing machines and reduces spare part costs..

Technical data
Temperature range 20 to 200 °C
Adhesive pressure Max. 100 bar
Adhesive Thermoplastic adhesives
Adhesive viscosity 100 to 5,000 mPas
Operating cycles 10 million *
Switching frequency 50 Hz*/**
Adhesive outlet 12.5 ms*
Jetting element width 22 mm
Nozzles 294 / 296 / 292 (90 °)
Air connection 5 to 6 bar, cleaned and not oiled
Air consumption Approx. 6 ml per jetting element / cycle (5 bar)
Supply voltage 230 VAC (EN60204), 50/60 Hz
Supply voltage, solenoid valve 24 VDC / 7.3 W
Attachment For shaft ø 12mm, flat steel or M5 thread
Noise level Approx. 65 to 70 dB(A)
Degree of protection IP55

*For jetting element and valve. Depending on operating environment and conditions (adhesive, temperature, frequency, etc.)
** Continuous load maximum 10 Hz
